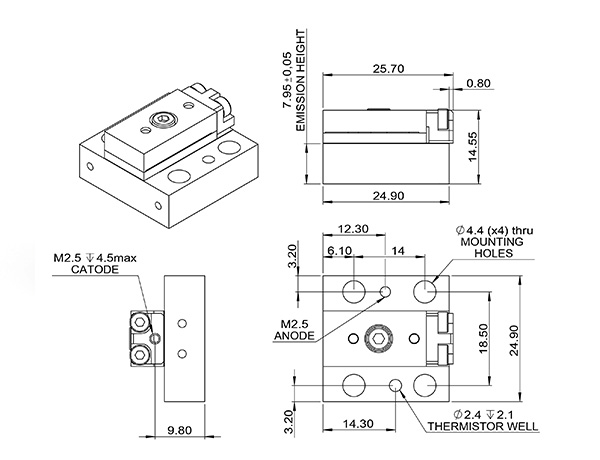

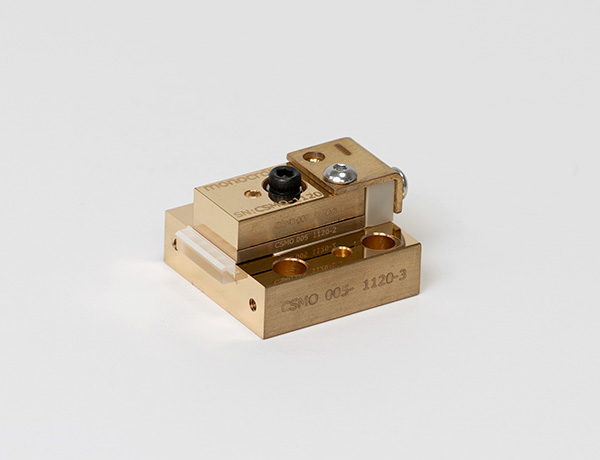

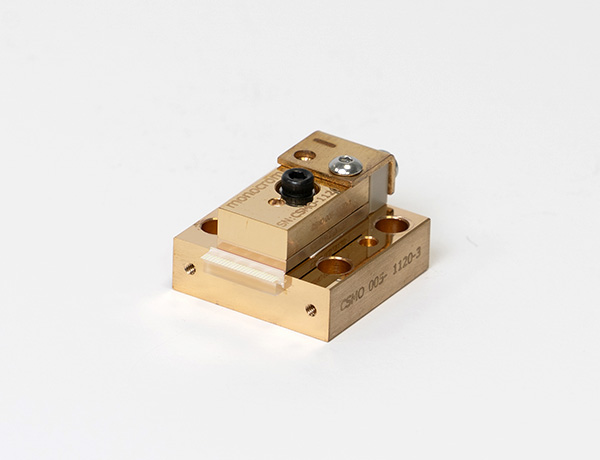

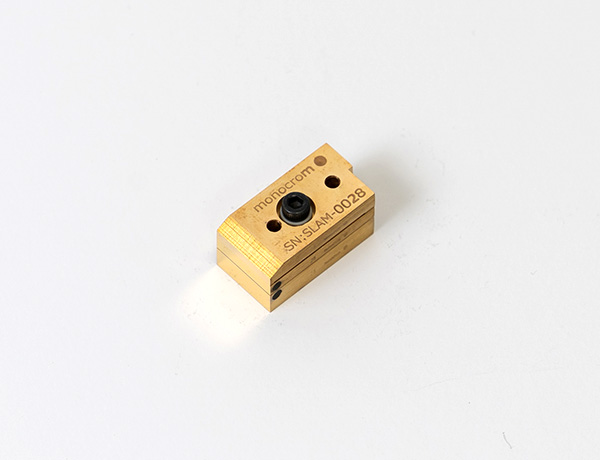

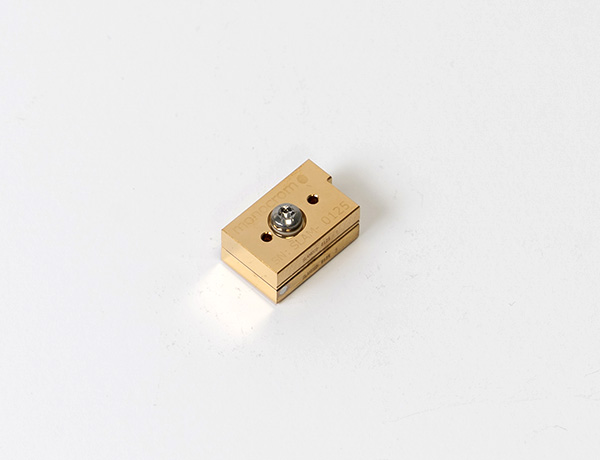

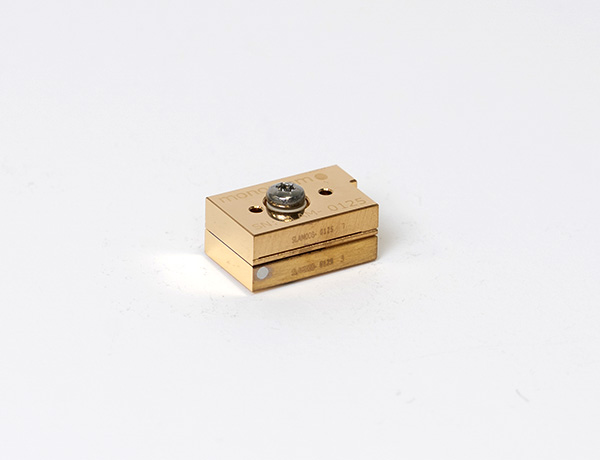

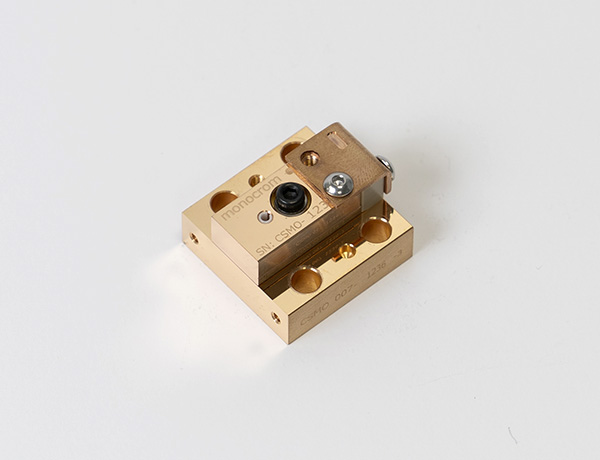

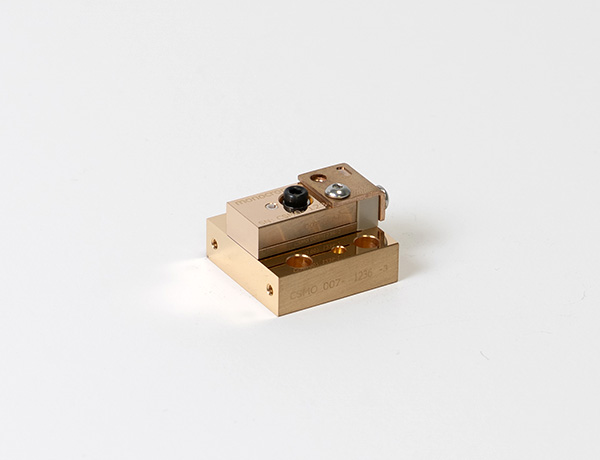

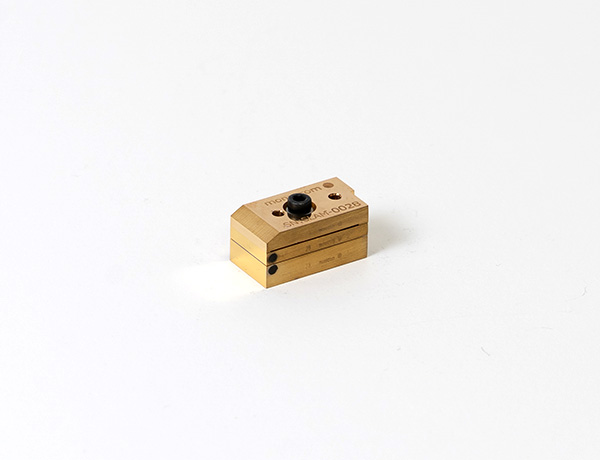

Barras únicas
Diseñados para ofrecer el máximo rendimiento térmico y óptico, nuestros encapsulados para barra láser individual (single bar) integran sistemas de refrigeración por conducción pasiva (Passive Cooling) o por macrocanales de agua de alta eficacia. Disponibles en un rango de longitud de onda de 640 nm a 2300 nm, con una potencia de salida que varía en función de la longitud de onda y del fill factor de cada barra.
Tecnología patentada Monocrom Clamping™
Prescindimos del proceso de soldadura tradicional gracias a nuestra tecnología de fijación mecánica Clamping™ (Solder-Free). Este ensamblaje sin tensión térmica elimina la degradación del semiconductor, minimiza el efecto smile a niveles insuperables y garantiza una vida útil prolongada con una fiabilidad superior.
Personalización y opciones ópticas
Ofrecemos la integración opcional de microópticas de colimación de eje rápido (FAC) y eje lento (SAC) adaptadas a los requerimientos específicos de su aplicación, así como de VHGs (Volume Holographic Gratings) para estabilización espectral, que reducen la deriva de la longitud de onda con la temperatura y estrechan el ancho de línea de emisión.
Especificaciones técnicas
| Longitud de onda (nm) | Potencia de salida (W) | Modo de operación | Activo/pasivo | Optics | Descripción | Ficha de datos |
|---|---|---|---|---|---|---|
| 1470 | 25 | CW | PASIVO | HPDL CS-mount 1470nm 1b 25W 85A CW | — | |
| 880 | 30 | CW | PASIVO | HPDL CS-mount 880nm 1b 30W 30A CW FAC365 | — | |
| 806 | 40 | CW | PASIVO | HPDL CS-mount 806nm 1b 40W 40A CW FAC590 | — | |
| 808 | 40 | CW | PASIVO | HPDL CS-mount 808nm 1b 40W 50A CW | — | |
| 808 | 40 | CW | PASIVO | HPDL CS-mount 808nm 1bar 40W 40A CW | — | |
| 808 | 60 | CW | PASIVO | HPDL CS-mount 808nm 1b 60W 60A CW FAC-SAC | — | |
| 793 | 80 | CW | PASIVO | HPDL CS-mount 793nm 1b 80W 85A CW FAC-SAC | — | |
| 980 | 80 | CW | PASIVO | HPDL CS-mount 980nm 1b 80W 95A CW | — | |
| 808 | 100 | CW | PASIVO | HPDL CS-mount 808nm 1b 100W 100A CW | — | |
| 940 | 100 | CW | PASIVO | HPDL CS-mount 940nm 1b 100W 110A CW FAC Bottom | — | |
| 940 | 100 | CW | PASIVO | HPDL CS-mount 940nm 1b 100W 110A CW FAC-SAC Bottom | — | |
| 940 | 100 | CW | PASIVO | HPDL CS-mount 940nm 1b 100W 110A CW FAC-BTS Bottom | — | |
| 940 | 100 | CW | PASIVO | HPDL CS-mount 940nm 1b 100W 110A CW | — | |
| 977 | 120 | CW | PASIVO | HPDL CS-mount 977nm 1b 120W 120A CW | — | |
| 808 | 300 | QCW | PASIVO | HPDL CS-mount 808nm 1b 300W 285A QCW FAC365 Bottom | — | |
| 808 | 300 | QCW | PASIVO | HPDL CS-mount 808nm 1b 300W 285A QCW | — | |
| 940 | 300 | QCW | PASIVO | HPDL CS-mount 940nm 1b 300W 290A QCW | — | |
| 976 | 300 | QCW | PASIVO | HPDL CS-mount 976nm 1b 300W 290A QCW | — | |
| 808 | 500 | QCW | PASIVO | HPDL CS-mount 808nm 1b 500W 470A QCW | — | |
| 808 | 80 | CW | ACTIVO | HPLD Stack Short Version 1b 808nm 80W 80A CW | — |
Filtrar resultados
| Longitud de onda (nm) | Potencia de salida (W) | Modo de funcionamiento | Refrigeración | Colimación | Estabilización de la longitud de onda | Comentarios | Ficha de datos |
|---|---|---|---|---|---|---|---|
| 808 | up to 100 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 808 | up to 100 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 880 | up to 100 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 880 | up to 100 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 915 | up to 200 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 915 | up to 200 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 940 | up to 120 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 940 | up to 120 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 976 | up to 150 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 976 | up to 150 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 1,060 | up to 100 / laser bar | CW | active | FAC / SAC / BT | 2-sides water cooling | AS-Mount | |
| 1,060 | up to 100 / laser bar | CW | passive | FAC / SAC / BT | Smile < 0.1 µm | CS-Mount | |
| 1,470 | up to 25 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 1,470 | up to 25 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 1,550 | up to 25 / laser bar | CW | active | FAC / SAC / BT | 2-sides water cooling | AS-Mount | |
| 1,550 | up to 25 / laser bar | CW | passive | FAC / SAC / BT | Smile < 0.1 µm | CS-Mount | |
| 1,940 | up to 15 / laser bar | CW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 1,940 | up to 15 / laser bar | CW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 760 | up to 40 / laser bar | CW | active | FAC / SAC / BT | 2-sides water cooling | AS-Mount | |
| 760 | up to 40 / laser bar | CW | passive | FAC / SAC / BT | Smile < 0.1 µm | CS-Mount | |
| 808 | up to 500 / laser bar | QCW | active | FAC | available up on request | 2-sides water cooling | AS-Mount |
| 808 | up to 500 / laser bar | QCW | passive | FAC | available up on request | Smile < 0.1 µm | CS-Mount |
| 880 | up to 500 / laser bar | QCW | active | FAC | available up on request | 2-sides water cooling | AS-Mount |
| 880 | up to 500 / laser bar | QCW | passive | FAC | available up on request | Smile < 0.1 µm | CS-Mount |
| 915 | up to 200 / laser bar | QCW | active | FAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 915 | up to 200 / laser bar | QCW | passive | FAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 940 | up to 300 / laser bar | QCW | active | FAC | available up on request | 2-sides water cooling | AS-Mount |
| 940 | up to 300 / laser bar | QCW | passive | FAC | available up on request | Smile < 0.1 µm | CS-Mount |
| 976 | up to 400 / laser bar | QCW | active | FAC | available up on request | 2-sides water cooling | AS-Mount |
| 976 | up to 400 / laser bar | QCW | passive | FAC | available up on request | Smile < 0.1 µm | CS-Mount |
| 1,060 | up to 250 / laser bar | QCW | active | FAC / BT | 2-sides water cooling | AS-Mount | |
| 1,060 | up to 250 / laser bar | QCW | passive | FAC / BT | Smile < 0.1 µm | CS-Mount | |
| 1,470 | up to 25 / laser bar | QCW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 1,470 | up to 25 / laser bar | QCW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 1,550 | up to 25 / laser bar | QCW | active | FAC / SAC / BT | 2-sides water cooling | AS-Mount | |
| 1,550 | up to 25 / laser bar | QCW | passive | FAC / SAC / BT | Smile < 0.1 µm | CS-Mount | |
| 1,940 | up to 15 / laser bar | QCW | active | FAC / SAC / BT | available up on request | 2-sides water cooling | AS-Mount |
| 1,940 | up to 15 / laser bar | QCW | passive | FAC / SAC / BT | available up on request | Smile < 0.1 µm | CS-Mount |
| 760 | up to 200 / laser bar | QCW | active | FAC | 2-sides water cooling | AS-Mount | |
| 760 | up to 200 / laser bar | QCW | passive | FAC | Smile < 0.1 µm | CS-Mount |
